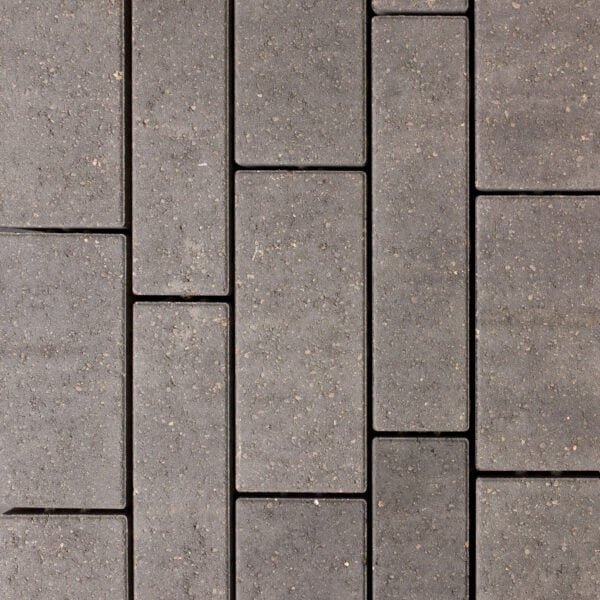

Boardwalk is an eight-paver system with a modern, linear look. It’s an excellent option for drawing the eye towards a focal point in any landscape. At 3 inches thick, it’s perfect for high-traffic areas, including driveways, patios and plazas. Wide spacers also allow it to be used as a permeable paver in locations that require good drainage.
*Available only in BC & Alberta.
*All eight sizes are produced in pallets; sizes are unavailable separately.
9.53 x 3.50 x 3.15 in
242 x 89 x 80 mm
9.53 x 4.69 x 3.15 in
242 x 119 x 80 mm
11.10 x 3.50 x 3.15 in
282 x 89 x 80 mm
11.10 x 4.69 x 3.15 in
282 x 119 x 80 mm
12.68 x 3.50 x 3.15 in
322 x 89 x 80 mm
12.68 x 4.69 x 3.15 in
322 x 119 x 80 mm
14.25 x 3.50 x 3.15 in
362 x 89 x 80 mm
14.25 x 4.69 x 3.15 in
362 x 119 x 80 mm
Charcoal
Natural
COLOURS SHOWN MAY VARY
Every effort has been made to ensure accuracy in the colour representations found on this website. However, due to the natural characteristics of concrete, the manufacturing process and on-screen display, actual colours in the final product may vary from that shown.
Boardwalk
| Description | Dimensions | Unit Size MM | Unit Size IN | Unit Face Area M2 | Unit Face Area Sq Ft | Unit Weight LB | No. of Horizontal Layers | Pallet Units | Pallet Face Area M2 | Pallet Face Area Sq Ft | Pallet Weight LB | Pedestrian | Road / Vehicular | Permeable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 x 4.5 | L X W X H | 362 x 119 x 80 | 14.25 x 4.69 x 3.15 | 0.04 | 0.44 | 17.17 | 7 | 28 | 7.06 | 75.74 | 2719 | |||
| 14 x 3 | L X W X H | 362 x 89 x 80 | 14.25 x 3.50 x 3.15 | 0.03 | 0.32 | 13.15 | 28 | |||||||
| 12.5 x 4.5 | L X W X H | 322 x 119 x 80 | 12.68 x 4.69 x 3.15 | 0.04 | 0.39 | 15.69 | 28 | ✓ | ✓ | ✓ | ||||
| 12.5 x 3 | L X W X H | 322 x 89 x 80 | 12.68 x 3.50 x 3.15 | 0.03 | 0.29 | 11.7 | 28 | ✓ | ✓ | ✓ | ||||
| 11 x 4.5 | L X W X H | 282 x 119 x 80 | 11.10 x 4.69 x 3.15 | 0.03 | 0.34 | 13.76 | 28 | ✓ | ✓ | ✓ | ||||
| 11 x 3 | L X W X H | 282 x 89 x 80 | 11.10 x 3.50 x 3.15 | 0.02 | 0.25 | 10.26 | 28 | ✓ | ✓ | ✓ | ||||
| 9 x 4.5 | L X W X H | 242 x 119 x 80 | 9.53 x 4.69 x 3.15 | 0.03 | 0.29 | 11.82 | 28 | ✓ | ✓ | ✓ | ||||
| 9 x 3 | L X W X H | 242 x 89 x 80 | 9.53 x 3.50 x 3.15 | 0.02 | 0.21 | 8.82 | 28 | ✓ | ✓ | ✓ |
| Colours |
|---|
| Special Order |
Light Vehicular
Pedestrian
Permeable
Pallet Information
Available to order in full pallets only. Each bundle contains 76 sq. ft. between the eight sizes. A $35.00 returnable pallet fee will be charged to any bundle of Boardwalk.
Unit of Measure
The Unit of Measure for Boardwalk is Layer.
Order Considerations
Contact your local Barkman sales representative for information on special or custom order products in terms of minimum production cycles required.
Installation
Recommended to use Paver Saver Mat (103164) between the plate compactor and surface. Boardwalk is compatible with some machine paver laying systems. Boardwalk can also be installed as a permeable paver. Recommended to use Polybind Complete G2 or Gator Maxx G2 Polymeric Sand for commercial applications if not using for permeable. Product designed to be installed in a running bond pattern.
