Architextures™
A New Standard

Architextures™ is the latest large format, contemporary retaining wall from Barkman. It’s built to handle the most demanding landscaping challenges and designed to fit seamlessly in the most modern of spaces.



Wall Estimation Tool

Experience the new Wall Estimation Tool for Architextures™.  This free, easy to use Web Application allows you to quickly estimate your next Retaining Wall project in minutes, including all quantities of Wall Block, Corner Units, Cap Stones, even Geogrid and backfill materials!  The simple drawing interface makes it easy to lay your wall out, then generate a complete, professional report that can be used for costing or feasibility purposes.

Wall Estimation Tool

Wall Estimation Tutorial Video
This quick tutorial will guide you through the basics of designing your Architextures™ retaining wall using the Wall Estimation tool.

Note: This new Estimation tool is for costing and feasibility only. A Professional Engineer must always be retained to prepare a Final Design prior to bidding or construction.

Sizes (H X W X D)

Standard
5.90 x 35.43 x 11.22
150 x 900 x 285

Corner
5.90 x 35.43 x 11.22
150 x 900 x 285

Closed End Coping
5.90 x 35.43 x 11.22
150 x 900 x 285

Colours

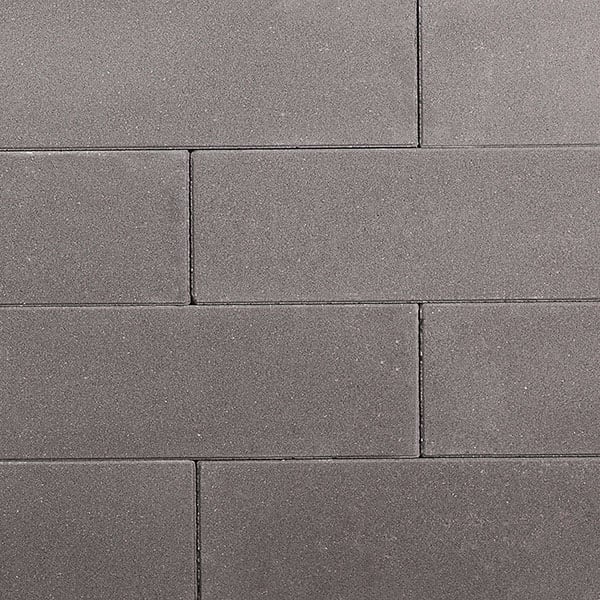

Ash

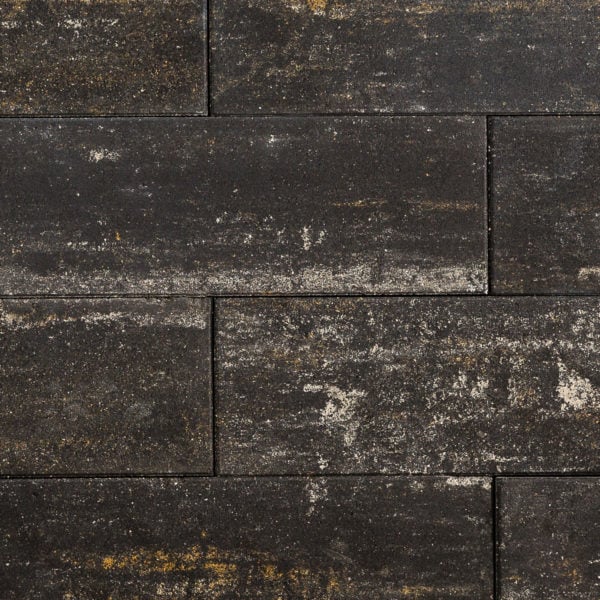

Flint

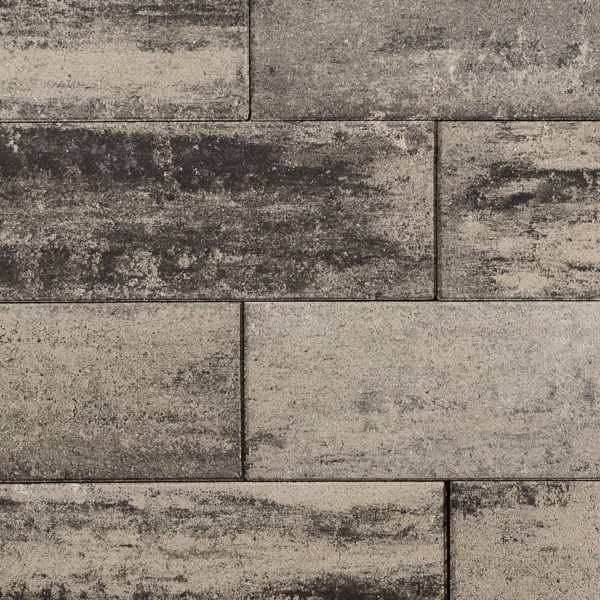

Sterling

COLOURS SHOWN MAY VARY
Every effort has been made to ensure accuracy in the colour representations found on this website. However, due to the natural characteristics of concrete, the manufacturing process and on-screen display, actual colours in the final product may vary from that shown.

Specifications

DescriptionDimensionsUnit Size MMUnit Size INUnit Face Area M2Unit Face Area Sq FtUnit Weight LBNo. Of Horizontal LayersPallet UnitsPallet Face Area M2Pallet Face Area Sq FtPallet Weight LB
Standard H X W X D 150 x 900 x 285 5.9 x 35.43 x 11.22 0.13 1.45 188.77 15 2.02 21.8 2832
Coping H X W X D 150 x 900 x 285 5.9 x 35.43 x 11.22 0.13 1.45 189.9 15 2.02 21.8 2849
Corner H X W X D 150 x 900 x 285 5.9 x 35.43 x 11.22 0.13 1.45 184.14 10 1.35 14.53 1841
ColoursItem No. StandardItem No. CopingItem No. Corner
Flint 134824 137750 134830
Sterling 134825 137752 134831
Ash 134826 137751 134832

Applications

Garden Walls Application Icon

Garden Walls

Retaining / Support / Freestanding Walls Application Icon

Retaining / Support / Freestanding Walls

Product Notes

Pallet Information

Every bundle of coping units will come with 6 left end coping units, 6 right end coping units and 3 regular coping units which have open ends. Available to order in full pallets only. A $35.00 returnable pallet fee will be charged to any bundle of Architextures

Unit of Measure

The Unit of Measure for Architextures is Each.

Order Considerations

Contact your local Barkman sales representative for information on special or custom order products in terms of minimum production cycles required.

Installation

This product can be mechanically installed. To calculate pieces required, multiply the wall length, in feet, by 0.338. This will give you the number of pieces required per layer. Then multiply this by the number of layers to determine total quantity required. Please note that 0.338 is the multiplier used for both the standard and coping units. For information on wall heights, consult the product installation guide and technical specifications. Check your local building codes and consult a professional engineer when required
